         As you must know that  Galleon forum using Markitup editor to create HTML formatted posts. Markitup is a jQuery based easily configurable markup editor. It has "link to image" functionality which used to add URL of a image to show that image in the post. But it doesn't have facility to upload a file to server or browse a file which is already uploaded by that user. I thought, it is good idea to create a plug-in to do the same.

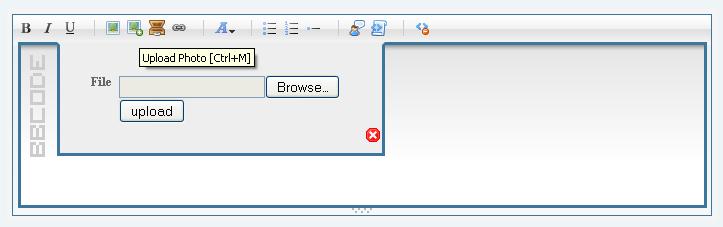

UI mockup for the file upload is

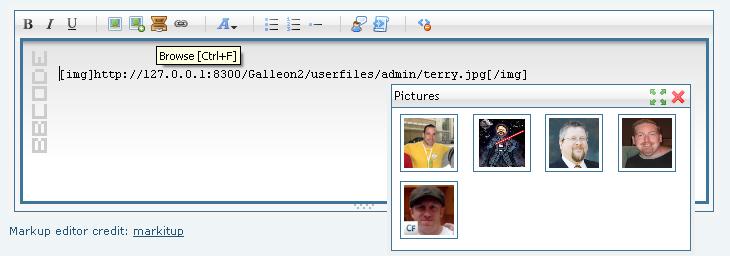

Once the user uploaded a file or click on browse button in markitup menu bar, a popup browse div will showed to the user to select their uploaded image. I made browse window as draggable using jQuery UI.  Browse uploaded files interface,

We will see the step by step code changes to implement this. First we need to add new menu bar items. We can configure menu bar items in set.js file located in markitup\sets\default folder. You can change the icons in style.css in the same folder. Here modified version of set.js & style.css


{name:'Link to Photo Image', key:'P', replaceWith:'[img][![Url]!][/img]'},
 // Added by CF Mitrah
{name:'Upload', key:'M',beforeInsert:function(markItUp){InlineUpload.display(markItUp,true)}},
{name:'Browse', key:'F',beforeInsert:function(markItUp){InlineUpload.display(markItUp,false)}},
// Added by CF Mitrah
{name:'Link', key:'L', openWith:'[url=[![Url]!]]', closeWith:'[/url]', placeHolder:'Your text to link here...'},

InlineUpload javascript class will take care of file upload ajax call & browse uploaded images. InlineUpload.js content is,

var upload = false;
var InlineUpload =
{
	dialog: null,
	block: '',
	offset: {},
	options: {
		container_class: 'markItUpInlineUpload',
		form_id: 'inline_upload_form',
		action: 'imgUploader.cfm',
		inputs: {
			file: { label: 'File', id: 'inline_upload_file1', name: 'inline_upload_file1' }
		},
		submit: { id: 'inline_upload_submit', value: 'upload' },
		close: 'inline_upload_close',
		iframe: 'inline_upload_iframe'
	},
	display: function(hash,uploadOption)
	{
		if(uploadOption){
		if( ! $('.markItUpInlineUpload').length)
		{
			var self = this;

		/* Find position of toolbar. The dialog will inserted into the DOM elsewhere
		 * but has position: absolute. This is to avoid nesting the upload form inside
		 * the original. The dialog's offset from the toolbar position is adjusted in
		 * the stylesheet with the margin rule.
		 */
		this.offset = $(hash.textarea).prev('.markItUpHeader').offset();

		/* We want to build this fresh each time to avoid ID conflicts in case of
		 * multiple editors. This also means the form elements don't need to be
		 * cleared out.
		 */
		this.dialog = $([
                       '
',
			this.options.inputs.file.label,
			'
',

		].join(''))
			.appendTo(document.body)
			.hide()
			.css('top', this.offset.top)
			.css('left', this.offset.left);


		//init submit button

		$('#'+this.options.submit.id).click(function()
		{
			if($('#inline_upload_file1').val() == ''){
				alert('Please select a file to upload');
				return false;
			}
			upload = true;
			$('#'+self.options.form_id).submit().fadeTo('fast', 0.2);
		});


		// init cancel button

		$('#'+this.options.close).click(this.cleanUp);


		// form response will be sent to the iframe

		$('#'+this.options.iframe).bind('load', function()
		{
			var result = document.getElementById(''+self.options.iframe)
                                        .contentWindow.document.body.innerHTML;
			if(upload){
					$('#resultContainer').html(result);
					$(".module .products a").click(function() {
						src = $(this).attr("href");
						alt = $(this).attr("title");
						//$.markItUp( {replaceWith:'' });
						$.markItUp( {replaceWith:'[img]'+src+'[/img]' });
						$("#linkPlugin").fadeOut().css("zIndex", 11);
						return false;
					});
					InlineUpload.dialog.fadeOut().remove();

					$("#linkPlugin").fadeIn().css('top', self.offset.top-80).css('left', self.offset.left+460).css("zIndex", 11);
					upload = false;
			}
		});

			// Finally, display the dialog
			this.dialog.fadeIn('slow');
			}

	}else{
		this.offset = $(hash.textarea).prev('.markItUpHeader').offset();
		$('#resultContainer').load('imgUploader.cfm','',function() {
				$(".module .products a").click(function() {
						src = $(this).attr("href");
						alt = $(this).attr("title");
						//$.markItUp( {replaceWith:'' });
						$.markItUp( {replaceWith:'[img]'+src+'[/img]' });
						$("#linkPlugin").fadeOut().css("zIndex", 11);
						return false;
					});
			});

		$("#linkPlugin").fadeIn().css('top', this.offset.top-80).css('left', this.offset.left+460).css("zIndex", 11);

		}
	},
	cleanUp: function()
	{
		InlineUpload.dialog.fadeOut().remove();
	}
};

For draggable functionality of browse window, we need following jQuery files  jquery.dimensions.js, ui.draggable.ext.js, ui.draggable.js, ui.mouse.js.  I added all this jQuery UI related JS files as well as InlineUpload.js in pagetemplates/common_header.cfm page.


    <script src="/blog/markitup/jquery.pack.js" type="text/javascript"></script>
    <script src="/blog/markitup/jquery.dimensions.js" type="text/javascript"></script>
    <script src="/blog/markitup/ui.mouse.js" type="text/javascript"></script>
    <script src="/blog/markitup/ui.draggable.js" type="text/javascript"></script>
    <script src="/blog/markitup/ui.draggable.ext.js" type="text/javascript"></script>

    <script src="/blog/markitup/jquery.markitup.js" type="text/javascript"></script>
    <script src="/blog/markitup/InlineUpload.js" type="text/javascript"></script>
    <script src="/blog/markitup/sets/default/set.js" type="text/javascript"></script>

I also modified the document ready function to support our functionalities.

<script>
$(document).ready(function()    {
    $('##markitup').markItUp(mySettings);
    // make modules draggable
    dragProp = { handle:".handle", zIndex:100, opacity:0.9, scroll:1 };
    $('##linkPlugin').hide().draggable( dragProp );

    $('.close').click(function() {
        $(this).parent().parent().hide();
        return false;
    });
    $('.handle').click(function() {
        return false;
    });


    // use markItUp! features when clicking on "add to editor" link in a module
    $(".module .products a").click(function() {
        src = $(this).attr("href");
        alt = $(this).attr("title");
        $.markItUp( {replaceWith:'' });
        return false;
    });
});
</script>

I have added new container div in that page. Once the user click on the browse button, this div will populate using ajax call.

<div id="linkPlugin">
        <div class="toolbar">
         <a  href="##" class="handle">Move</a>
        <a href="##"  class="close">Close</a>
        </div>
        <div  id="resultContainer" class="module">  </div>
    </div>

ImgUploader.cfm is responsible for server side file upload & directory read operation for user's folder.It is a POC, So my CF code is not 100% optimized as well as I didn't coded for MIME/File upload security issue. It is a simple upload & Directory listing functionality, so please optimize yourself

<cfsilent>
	<cfset uName = getAuthUser()>
	<cfif uName neq ''>
	<cfset userid = application.user.getUserID(getAuthUser())>
	<cfset userDir = ExpandPath( './userfiles/#uName#' )>
	<cfset userWebDir = "userfiles/#uName#">

	<cfif not DirectoryExists(userDir)>
 		<cfdirectory action="create" mode="777" directory="#userDir#">
 	</cfif>
	<cfif isDefined("form.fieldnames")>
		<cfloop	index="strFileIndex" from="1" to="#listlen(form.FIELDNAMES)#"	step="1">
			<cfset strField = "inline_upload_file#strFileIndex#" />
			<cfif (	StructKeyExists( FORM, strField ) AND Len( FORM[ strField ] )	)>
				<cffile	action="upload"	filefield="#strField#"	destination="#userDir#" nameconflict="makeunique"  result="upRes"	/>
			</cfif>
		</cfloop>
	</cfif>
	<cfdirectory action="list" name="qFiles" directory="#userDir#">
	</cfif>
</cfsilent>
<cfif uName eq ''><h3>Login error</h3><div><br />Please login again<br /><br /></div><cfabort></cfif>
	<h3>Pictures</h3>
	<div style="display: block;" class="products slide">
	<table width="100%" border="0" cellpadding="2" cellspacing="0">
	<tbody>
		<cfoutput query="qFiles">
		<cfif  qFiles.currentrow eq 0><tr></cfif>
			<td scope="col" width="50">
				<a href="#application.settings.rootURL#/#userWebDir#/#name#" title="#left(name,len(name)-4)#">
				<img src="#userWebDir#/#name#" alt="Product 1" width="50" border="0" height="50">
				</a>
			</td>
		<cfif  qFiles.currentrow mod 4 eq 0 and  qFiles.currentrow neq 0></tr><tr></tr></cfif>
		</cfoutput>
	</tbody></table>
	</div>

You can download all modified files here
